Description

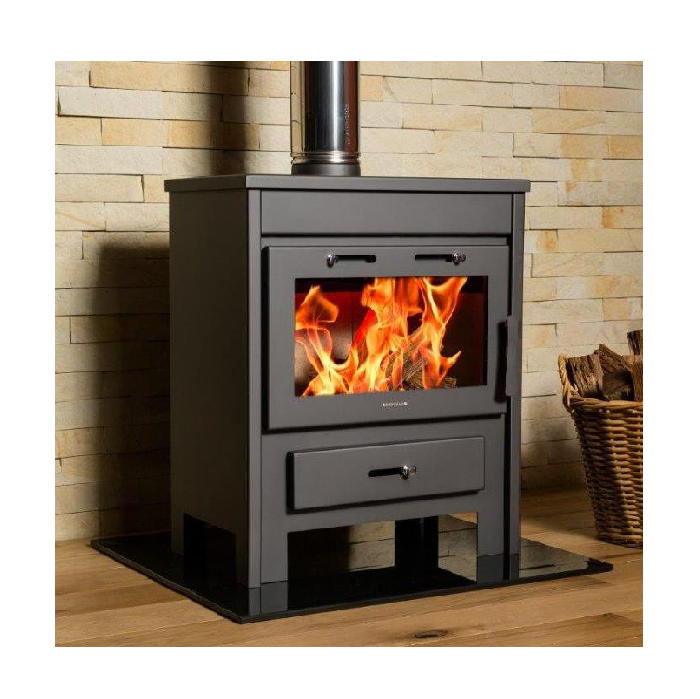

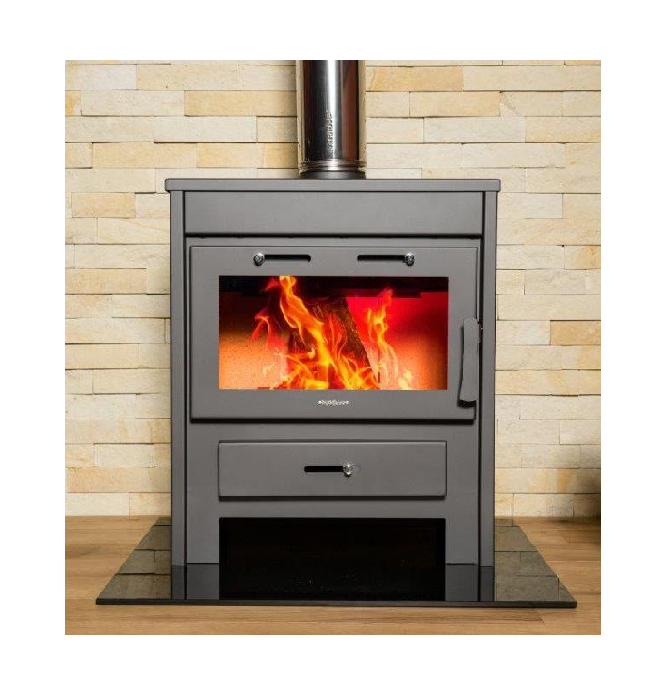

Some rooms simply swallow heat. Double volume lounges, open-plan living and dining areas, and homes with big glass doors all need more than a small stove can give. The Hydrofire Ray Max G was built for exactly that job. It is an updated version of the earlier Ray Max, with a fresh look that includes square legs and a flat handle, and it pairs a high output with a large glass window so you can enjoy the fire from across the room.
Hydrofire Ray Max G Features
High output for big spaces
This steel wood fireplace runs from 13kW up to 21kW, and Hydrofire gives it a heating area of 170 m2. That range lets you burn it hard on the coldest nights and turn it down on milder evenings, using the air vents to control how fast the wood burns.
A firebox that holds heat
The combustion chamber is lined with firebrick, which soaks up heat and keeps the fire burning hot and clean. It takes logs of up to 45 centimetres, so you spend less time cutting wood. Efficiency is 76%, which means more of the heat from each load ends up in your living space.
Simple cleaning
Clearing ash is quick thanks to the cast iron grate and a pan that lifts out. Lift the pan out, empty it outside, slide it back and you are ready to light again.
Size and flue
The Ray Max G weighs 92 kg and measures 43.5 x 68.5 x 87 cm. It connects to a 150 mm flue from the top, which keeps the pipe run straight and tidy above the stove.
Is the Ray Max G fireplace right for your home?
With a 170 m2 heating area, it is a large freestanding fireplace best suited to big lounges, double volume rooms and open-plan homes. In a small room it would run too hot, so we may suggest something smaller. Read our guide to the top Hydrofire fireplace models, or browse all our freestanding fireplaces to compare sizes.
Installation in Cape Town
Our team supplies and installs the Ray Max G with a 150 mm flue, the right cowl for Cape wind and roof flashing that stays dry in winter rain. We sort out compliance too. See how our fireplace installation in Cape Town works, or view more of the Hydrofire fireplace range.
Ray Max G FAQs
How is the Ray Max G different from the older Ray Max?
The G is the updated model. It has a new look with square legs and a flat handle, while keeping the large window and high output that made the Ray Max popular for big rooms.
Will the Hydrofire Ray Max G heat a double volume room?
Yes, it is designed for large spaces and double volume areas, with a 170 m2 heating area. Tall ceilings trap heat up high, so we look at your room layout before confirming the fit.
Planning a fireplace for a big room? Send us your floor plan or a few photos and our team will come back with advice and a quote.
