Description

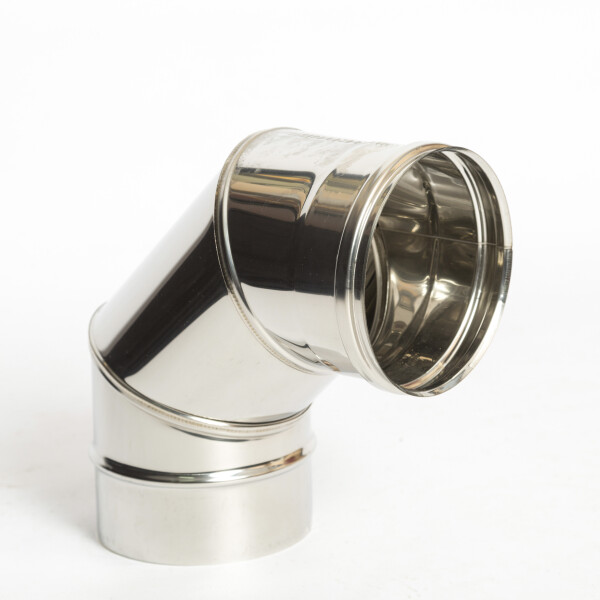

Large braai canopies and big built-in fireplaces often need a flue of 250mm or more, and every part of that run has to match. The 250mm elbow 90 degree bend lets a wide flue change direction cleanly, for example from a horizontal outlet to a vertical rise through the roof. It is a stainless steel flue bend, so it copes with high flue temperatures and the salty air found close to the Cape coast.
250mm Elbow 90 Degree Uses
A 90 degree elbow pipe is mostly used where a canopy, hood or appliance has a side or rear outlet, or where the flue has to step around a beam, gutter or overhang. Because sharp turns slow the draw, we use them only where a straight run is not possible and keep the vertical section above the bend as tall as practical.
Details
- Diameter: 250mm
- Angle: 90 degrees
- Material: stainless steel
- Weight: 1.12 kg
Fitting note
Measure your existing pipe before ordering, as the elbow must slide snugly into a matching 250mm section. Seal each joint, support the horizontal part with brackets and keep the correct clearance from timber trusses and ceilings. You will find matching parts in our elbows range and the wider flues and accessories section. For a complete design and fit, our flue installation team covers greater Cape Town.
250mm Bend FAQs
Can I use this bend on a braai chimney?
Yes, as long as your braai flue is 250mm. Wide braai chimneys benefit from as few bends as possible, so if you need to offset the flue we may suggest two gentler bends to keep smoke moving upward.
Unsure about sizing or layout? Share your flue measurements with us and we will check them before you buy.
